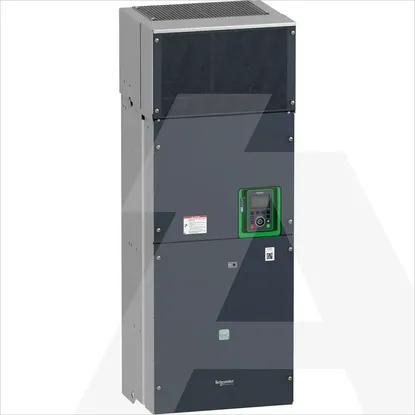

Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Height1190mm
With control elementYes
Depth377mm
Number of analogue inputs3
Number of digital outputs0
Number of digital inputs6
Width440mm
Number of HW-interfaces RS-4220
Number of analogue outputs2
Supporting protocol for LONNo
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet1
With optical interfaceYes
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSYes
Number of HW-interfaces other0
Number of HW-interfaces USB0
Supporting protocol for INTERBUS-SafetyNo
Number of HW-interfaces RS-4851
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
Supporting protocol for SERCOSNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUSNo
Supporting protocol for ModbusYes
With PC connectionNo
Supporting protocol for other bus systemsNo
Supporting protocol for CANNo
Supporting protocol for DeviceNetYes
Mains frequency50/60 Hz
4-quadrant operation possibleYes
Number of interfaces PROFINET0
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Relative symmetric net frequency tolerance5%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IOYes
Max. output frequency500Hz
Supporting protocol for EtherNet/IPYes
Relative symmetric net voltage tolerance10%
Type of converterU converter
Supporting protocol for PROFIsafeNo
Max. output at quadratic load at rated output voltage220kW
Supporting protocol for DeviceNet SafetyNo
Integrated breaking resistanceNo
Supporting protocol for PROFINET CBANo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SafetyBUS pNo
Max. output voltage480V
Supporting protocol for BACnetNo
Degree of protection (IP)IP00
Mains voltage380 - 480V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage220kW
Nominal output current I2N427A
