Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital outputs0
Number of digital inputs6
Number of HW-interfaces serial TTY0
With control elementYes
Supporting protocol for LONNo
Number of analogue outputs2
Height2350mm
Number of analogue inputs3
Width600mm
Number of HW-interfaces RS-4851
Number of HW-interfaces RS-2320
Depth669mm
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
With optical interfaceNo
Number of HW-interfaces other0
Supporting protocol for TCP/IPYes
Supporting protocol for ASINo
Supporting protocol for PROFIBUSYes
Supporting protocol for KNXNo
Supporting protocol for CANNo
Supporting protocol for ModbusYes
Type of converterU converter
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SERCOSNo
With PC connectionNo
Mains voltage380 - 440V
Mains frequency50/60 Hz
Supporting protocol for SUCONETNo
Number of phases input3
Number of interfaces PROFINET0
Degree of protection (IP)IP54
Supporting protocol for DeviceNetYes
Number of phases output3
4-quadrant operation possibleYes
Supporting protocol for other bus systemsNo
Max. output frequency500Hz
Integrated breaking resistanceNo
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Max. output at quadratic load at rated output voltage250kW
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Max. output at linear load at rated output voltage250kW
Relative symmetric net frequency tolerance5%
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Nominal output current I2N477A
Max. output voltage440V
Supporting protocol for EtherNet/IPYes
Relative symmetric net voltage tolerance10%
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

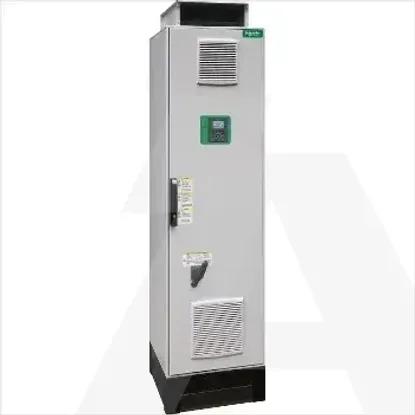

ATV650C25N4F | Frek. Pret. 250 KW -IP54 u Ormaru
