Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Depth393mm
With control elementYes
Height852mm
Width320mm
Number of digital inputs8
Number of HW-interfaces RS-4853
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Number of HW-interfaces RS-2320
Number of analogue outputs2
Number of HW-interfaces parallel0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
Number of HW-interfaces RS-4220
Number of digital outputs1
Number of analogue inputs3
Degree of protection (IP)IP00
Supporting protocol for TCP/IPNo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSYes
With optical interfaceNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Supporting protocol for SUCONETNo
Supporting protocol for CANYes
Supporting protocol for ASINo
Supporting protocol for KNXNo
Supporting protocol for DeviceNetYes
Supporting protocol for other bus systemsYes
Application in domestic- and commercial area permittedYes
Mains voltage380 - 480V
Relative symmetric net voltage tolerance10%
Supporting protocol for SERCOSNo
Number of interfaces PROFINET0
Supporting protocol for EtherNet/IPYes
Integrated breaking resistanceNo
Supporting protocol for PROFINET IOYes
Type of converterU converter
Max. output at linear load at rated output voltage110kW
4-quadrant operation possibleYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFIsafeNo
Supporting protocol for INTERBUS-SafetyNo
Number of phases input3
Mains frequency50/60 Hz
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
With PC connectionNo
Number of phases output3
Application in industrial area permittedYes
Relative symmetric net frequency tolerance5%
Max. output frequency500Hz
Max. output at quadratic load at rated output voltage110kW
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
Max. output voltage480V
Nominal output current I2N211A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

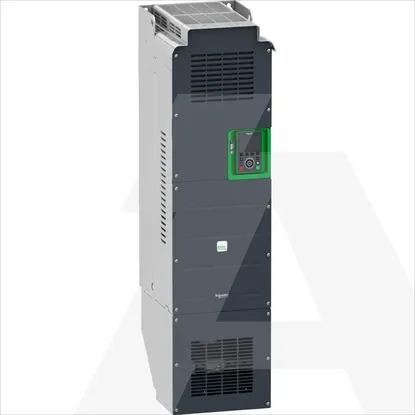

ATV930C11N4C | Frek.pret. IP00 110KW 400v/480v BEZ Chp.
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Frequency converter =< 1 kV
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Depth
393mm
With control element
Height
852mm
Width
320mm
Number of digital inputs
8
Number of HW-interfaces RS-485
3
Number of HW-interfaces USB
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces other
0
Number of HW-interfaces RS-232
0
Number of analogue outputs
2
Number of HW-interfaces parallel
0
Number of HW-interfaces industrial Ethernet
0
Supporting protocol for LON
Number of HW-interfaces RS-422
0
Number of digital outputs
1
Number of analogue inputs
3
Degree of protection (IP)
IP00
Supporting protocol for TCP/IP
Supporting protocol for INTERBUS
Supporting protocol for PROFIBUS
With optical interface
Supporting protocol for Data-Highway
Supporting protocol for Modbus
Supporting protocol for SUCONET
Supporting protocol for CAN
Supporting protocol for ASI
Supporting protocol for KNX
Supporting protocol for DeviceNet
Supporting protocol for other bus systems
Application in domestic- and commercial area permitted
Mains voltage
380 .. 480V
Relative symmetric net voltage tolerance
10%
Supporting protocol for SERCOS
Number of interfaces PROFINET
0
Supporting protocol for EtherNet/IP
Integrated breaking resistance
Supporting protocol for PROFINET IO
Type of converter
U converter
Max. output at linear load at rated output voltage
110kW
4-quadrant operation possible
Supporting protocol for AS-Interface Safety at Work
Supporting protocol for DeviceNet Safety
Supporting protocol for PROFIsafe
Supporting protocol for INTERBUS-Safety
Number of phases input
3
Mains frequency
50/60 Hz
Supporting protocol for PROFINET CBA
Supporting protocol for Foundation Fieldbus
With PC connection
Number of phases output
3
Application in industrial area permitted
Relative symmetric net frequency tolerance
5%
Max. output frequency
500Hz
Max. output at quadratic load at rated output voltage
110kW
Supporting protocol for BACnet
Supporting protocol for SafetyBUS p
Max. output voltage
480V
Nominal output current I2N
211A
