Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Width440mm
Height1195mm
With control elementYes
Number of digital inputs8
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Depth380mm
Supporting protocol for Data-HighwayNo
Number of HW-interfaces other0
Number of digital outputs1
Number of HW-interfaces serial TTY0
Supporting protocol for KNXNo
Supporting protocol for CANYes
With optical interfaceNo
Supporting protocol for ASINo
Number of HW-interfaces USB0
Supporting protocol for PROFIBUSYes
Supporting protocol for INTERBUSNo
Number of HW-interfaces RS-4853
Number of analogue inputs3
Number of analogue outputs2
Number of HW-interfaces parallel0
Supporting protocol for TCP/IPNo
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Supporting protocol for ModbusNo
Supporting protocol for DeviceNetYes
Supporting protocol for SUCONETNo
Integrated breaking resistanceNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET0
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Relative symmetric net voltage tolerance10%
Supporting protocol for DeviceNet SafetyNo
4-quadrant operation possibleYes
Max. output frequency500Hz
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Type of converterU converter
Max. output at quadratic load at rated output voltage220kW
With PC connectionNo
Supporting protocol for EtherNet/IPYes
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFINET IOYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Max. output voltage480V
Degree of protection (IP)IP00
Mains voltage380 - 480V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage220kW
Nominal output current I2N427A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

ATV930C22N4C | Frek. Pret. 220KW 400V/480V

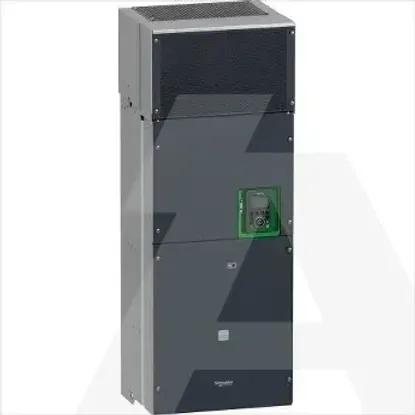

Main Product Image
