Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width598mm
Height1195mm
Number of HW-interfaces serial TTY0
Number of analogue inputs3
Number of digital inputs8
Number of HW-interfaces USB0
Depth380mm
Number of HW-interfaces other0
Number of HW-interfaces RS-4853
Number of HW-interfaces parallel0
Number of analogue outputs2
Number of HW-interfaces RS-2320
With control elementYes
Number of digital outputs1
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Supporting protocol for CANYes
With optical interfaceYes
Supporting protocol for ASINo
Supporting protocol for Data-HighwayNo
Supporting protocol for KNXNo
Supporting protocol for ModbusNo
Supporting protocol for TCP/IPNo
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSYes
Supporting protocol for LONNo
4-quadrant operation possibleYes
Number of interfaces PROFINET0
Mains frequency50/60 Hz
Mains voltage380 - 480V
With PC connectionNo
Number of phases output3
Integrated breaking resistanceNo
Supporting protocol for DeviceNetYes
Supporting protocol for INTERBUS-SafetyNo
Degree of protection (IP)IP00
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
Number of phases input3
Supporting protocol for other bus systemsYes
Supporting protocol for SUCONETNo
Max. output frequency500Hz
Type of converterU converter
Supporting protocol for SERCOSNo
Max. output at linear load at rated output voltage250kW
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Relative symmetric net voltage tolerance10%
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net frequency tolerance5%
Max. output at quadratic load at rated output voltage250kW
Nominal output current I2N481A
Max. output voltage480V
Supporting protocol for BACnetNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

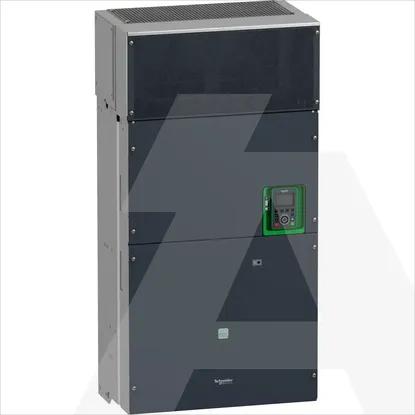

ATV930C25N4C | Frek. Pret. 250KW 400V/480V
