Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
With control elementYes
Depth274mm
Height673mm
Number of digital inputs8
Width226mm
Supporting protocol for LONNo
Number of analogue outputs2
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4853
Number of HW-interfaces USB0
Number of digital outputs1
Number of analogue inputs3
With optical interfaceYes
Supporting protocol for ASINo
Number of HW-interfaces other0
Supporting protocol for TCP/IPNo
Number of HW-interfaces parallel0
Supporting protocol for Data-HighwayNo
Degree of protection (IP)IP21
Supporting protocol for ModbusNo
Supporting protocol for INTERBUSNo
Supporting protocol for CANYes
Supporting protocol for DeviceNetYes
Supporting protocol for SUCONETNo
Supporting protocol for PROFIBUSYes
Supporting protocol for KNXNo
Supporting protocol for SERCOSNo
With PC connectionNo
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUS-SafetyNo
Number of phases output3
Type of converterU converter
4-quadrant operation possibleYes
Number of interfaces PROFINET0
Mains frequency50/60 Hz
Number of phases input3
Mains voltage380 - 480V
Integrated breaking resistanceNo
Application in industrial area permittedYes
Relative symmetric net voltage tolerance10%
Max. output at linear load at rated output voltage37kW
Max. output at quadratic load at rated output voltage37kW
Supporting protocol for AS-Interface Safety at WorkNo
Application in domestic- and commercial area permittedYes
Max. output frequency500Hz
Relative symmetric net frequency tolerance5%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IOYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET CBANo
Supporting protocol for DeviceNet SafetyNo
Nominal output current I2N74.5A
Supporting protocol for BACnetNo
Max. output voltage480V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

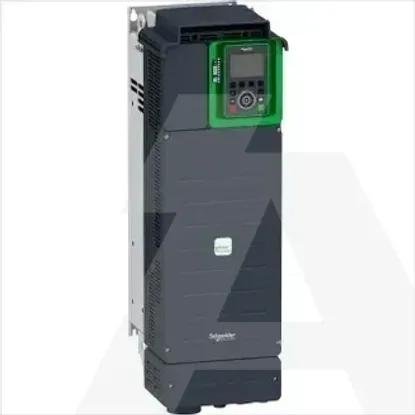

ATV930D37N4 | Frek. Pret. IP21 37KW 400v/480v
