Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital outputs1
With control elementYes
Depth669mm
Number of digital inputs8
Height2350mm
Width400mm
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
Number of HW-interfaces other0
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-2320
With optical interfaceNo
Number of HW-interfaces RS-4853
Supporting protocol for KNXNo
Number of analogue inputs3
Number of HW-interfaces USB0
Supporting protocol for TCP/IPNo
Supporting protocol for CANYes
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUSYes
Number of analogue outputs2
With PC connectionNo
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Supporting protocol for ModbusNo
Supporting protocol for DeviceNetYes
Supporting protocol for other bus systemsYes
Degree of protection (IP)IP54
Mains voltage380 - 440V
Supporting protocol for SERCOSNo
Application in industrial area permittedYes
Type of converterU converter
Mains frequency50/60 Hz
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for INTERBUS-SafetyNo
Max. output at linear load at rated output voltage132kW
4-quadrant operation possibleYes
Application in domestic- and commercial area permittedYes
Supporting protocol for AS-Interface Safety at WorkNo
Max. output frequency500Hz
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Number of interfaces PROFINET0
Max. output at quadratic load at rated output voltage132kW
Integrated breaking resistanceNo
Number of phases output3
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPYes
Number of phases input3
Supporting protocol for BACnetNo
Nominal output current I2N250A
Max. output voltage440V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

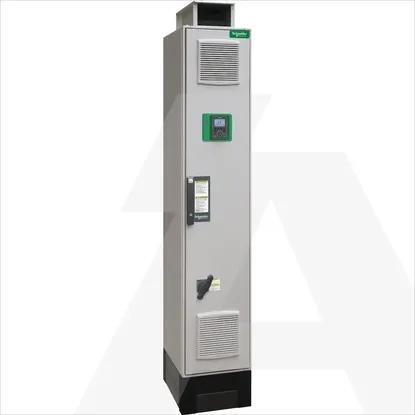

ATV950C13N4F | Frek. Pret. IP54 132KW 400/480V u Ormaru
