Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Height2350mm
Depth669mm
With control elementYes
Width600mm
Number of analogue outputs2
Number of digital outputs1
Supporting protocol for LONNo
Number of analogue inputs3
Number of digital inputs8
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4853
With optical interfaceNo
Supporting protocol for CANYes
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Supporting protocol for PROFIBUSYes
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Supporting protocol for INTERBUSNo
Supporting protocol for TCP/IPNo
Supporting protocol for KNXNo
Number of HW-interfaces other0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for ModbusNo
With PC connectionNo
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetYes
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayNo
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Type of converterU converter
Supporting protocol for AS-Interface Safety at WorkNo
Application in domestic- and commercial area permittedYes
Number of interfaces PROFINET0
Relative symmetric net frequency tolerance5%
Application in industrial area permittedYes
Max. output frequency500Hz
Mains frequency50/60 Hz
Supporting protocol for SafetyBUS pNo
Max. output at quadratic load at rated output voltage250kW
Integrated breaking resistanceNo
Supporting protocol for DeviceNet SafetyNo
Relative symmetric net voltage tolerance10%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
4-quadrant operation possibleYes
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFIsafeNo
Supporting protocol for BACnetNo
Max. output voltage440V
Degree of protection (IP)IP54
Mains voltage380 - 440V
Number of phases output3
Number of phases input3
Max. output at linear load at rated output voltage250kW
Nominal output current I2N477A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

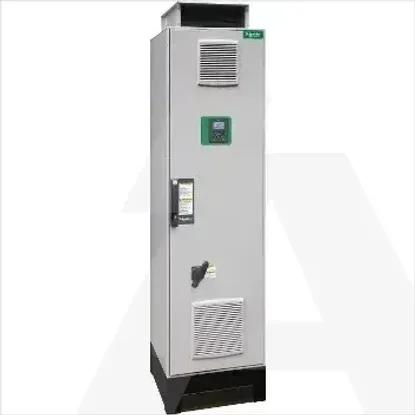

ATV950C25N4F | Frek. Pret. IP54 250KW 400/480V u Ormaru
