Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width264mm
Number of HW-interfaces RS-4220
Number of digital outputs1
Number of HW-interfaces parallel0
Number of digital inputs8
Height678mm
Supporting protocol for INTERBUSNo
Number of HW-interfaces other0
Number of HW-interfaces serial TTY0
With optical interfaceNo
Supporting protocol for ModbusNo
Number of HW-interfaces RS-4853
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Supporting protocol for ASINo
Number of analogue outputs2
Supporting protocol for PROFIBUSYes
Supporting protocol for KNXNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANYes
Number of HW-interfaces USB0
Number of analogue inputs3
Depth330mm
With control elementYes
Supporting protocol for LONNo
Supporting protocol for Data-HighwayNo
4-quadrant operation possibleYes
Supporting protocol for other bus systemsYes
Number of phases input3
Supporting protocol for SUCONETNo
Mains voltage380 - 480V
Degree of protection (IP)IP55
Max. output frequency500Hz
Type of converterU converter
Mains frequency50/60 Hz
With PC connectionNo
Supporting protocol for DeviceNetYes
Relative symmetric net frequency tolerance5%
Supporting protocol for INTERBUS-SafetyNo
Number of phases output3
Application in domestic- and commercial area permittedYes
Supporting protocol for SERCOSNo
Integrated breaking resistanceNo
Application in industrial area permittedYes
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage11kW
Max. output at linear load at rated output voltage11kW
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Number of interfaces PROFINET0
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Nominal output current I2N23.5A
Supporting protocol for BACnetNo
Supporting protocol for PROFIsafeNo
Max. output voltage480V
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

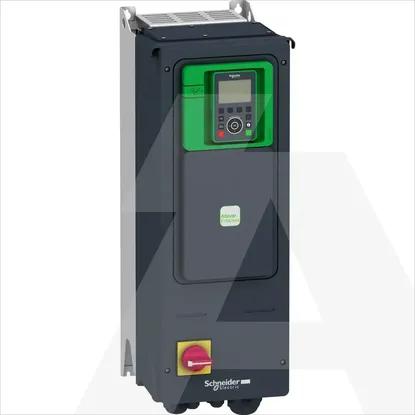

ATV950D11N4E | ATV950 IP55 11KW 400v/480v s Sklopkom
