Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital outputs1
Height910mm
Number of analogue inputs3
Number of digital inputs8
Width290mm
Depth401mm
With control elementYes
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Number of analogue outputs2
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4853
Supporting protocol for LONNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Supporting protocol for ASINo
Number of HW-interfaces other0
Supporting protocol for INTERBUSNo
Supporting protocol for PROFIBUSYes
With optical interfaceNo
Supporting protocol for SERCOSNo
Number of HW-interfaces USB0
Supporting protocol for TCP/IPNo
4-quadrant operation possibleYes
Supporting protocol for DeviceNetYes
With PC connectionNo
Supporting protocol for CANYes
Supporting protocol for other bus systemsYes
Mains frequency50/60 Hz
Mains voltage380 - 480V
Supporting protocol for SUCONETNo
Degree of protection (IP)IP55
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Number of interfaces PROFINET0
Type of converterU converter
Supporting protocol for KNXNo
Integrated breaking resistanceNo
Max. output at quadratic load at rated output voltage45kW
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IOYes
Number of phases output3
Relative symmetric net voltage tolerance10%
Max. output at linear load at rated output voltage45kW
Max. output frequency500Hz
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Max. output voltage480V
Supporting protocol for BACnetNo
Nominal output current I2N88A
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFIsafeNo
Number of phases input3
Relative symmetric net frequency tolerance5%
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

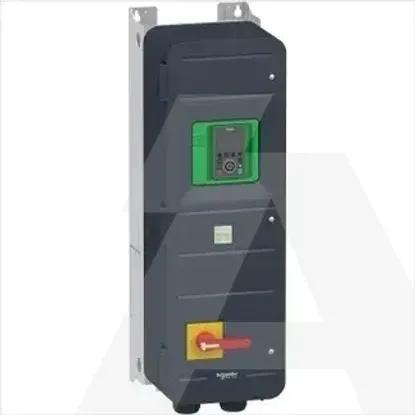

ATV950D45N4E | ATV950 IP55 45KW 400v/480v s Sklopkom
