Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of analogue outputs2
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4853
Number of HW-interfaces serial TTY0
Width345mm
Depth375mm
Number of digital outputs1
Height1250mm
Supporting protocol for LONNo
Number of digital inputs8
With control elementYes
Number of analogue inputs3
Supporting protocol for KNXNo
Number of HW-interfaces other0
Number of HW-interfaces USB0
Type of converterU converter
Number of HW-interfaces parallel0
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for ModbusNo
Mains frequency50/60 Hz
Degree of protection (IP)IP55
With optical interfaceNo
Supporting protocol for TCP/IPNo
Supporting protocol for SERCOSNo
With PC connectionNo
Supporting protocol for DeviceNetYes
Supporting protocol for ASINo
Number of interfaces PROFINET0
Mains voltage380 - 480V
Supporting protocol for CANYes
Supporting protocol for PROFIBUSYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for other bus systemsYes
4-quadrant operation possibleYes
Number of phases output3
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Number of phases input3
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage75kW
Max. output frequency500Hz
Relative symmetric net frequency tolerance5%
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
Integrated breaking resistanceNo
Max. output at linear load at rated output voltage75kW
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Supporting protocol for PROFINET IOYes
Max. output voltage480V
Nominal output current I2N145A
Supporting protocol for PROFIsafeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

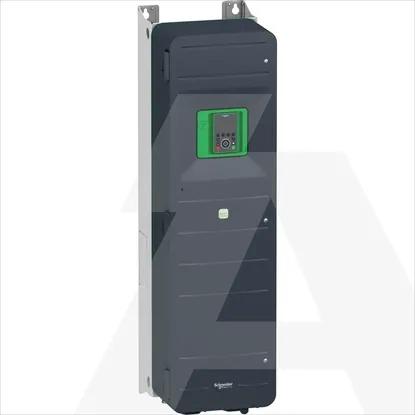

ATV950D75N4 | ATV950 IP55 75KW 400v/480v
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Frequency converter =< 1 kV
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of analogue outputs
2
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-485
3
Number of HW-interfaces serial TTY
0
Width
345mm
Depth
375mm
Number of digital outputs
1
Height
1250mm
Supporting protocol for LON
Number of digital inputs
8
With control element
Number of analogue inputs
3
Supporting protocol for KNX
Number of HW-interfaces other
0
Number of HW-interfaces USB
0
Type of converter
U converter
Number of HW-interfaces parallel
0
Supporting protocol for INTERBUS
Supporting protocol for SUCONET
Supporting protocol for Modbus
Mains frequency
50/60 Hz
Degree of protection (IP)
IP55
With optical interface
Supporting protocol for TCP/IP
Supporting protocol for SERCOS
With PC connection
Supporting protocol for DeviceNet
Supporting protocol for ASI
Number of interfaces PROFINET
0
Mains voltage
380 .. 480V
Supporting protocol for CAN
Supporting protocol for PROFIBUS
Supporting protocol for INTERBUS-Safety
Supporting protocol for other bus systems
4-quadrant operation possible
Number of phases output
3
Supporting protocol for Data-Highway
Supporting protocol for DeviceNet Safety
Supporting protocol for AS-Interface Safety at Work
Number of phases input
3
Relative symmetric net voltage tolerance
10%
Max. output at quadratic load at rated output voltage
75kW
Max. output frequency
500Hz
Relative symmetric net frequency tolerance
5%
Application in domestic- and commercial area permitted
Application in industrial area permitted
Integrated breaking resistance
Max. output at linear load at rated output voltage
75kW
Supporting protocol for PROFINET CBA
Supporting protocol for Foundation Fieldbus
Supporting protocol for EtherNet/IP
Supporting protocol for SafetyBUS p
Supporting protocol for BACnet
Supporting protocol for PROFINET IO
Max. output voltage
480V
Nominal output current I2N
145A
Supporting protocol for PROFIsafe
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
