Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Height1250mm
Width345mm
Depth436mm
With control elementYes
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Supporting protocol for LONNo
Number of analogue inputs3
Supporting protocol for ASINo
Number of HW-interfaces USB0
Number of HW-interfaces other0
Number of digital outputs1
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4853
Number of HW-interfaces RS-2320
Number of analogue outputs2
Number of HW-interfaces parallel0
With optical interfaceNo
Number of digital inputs8
Supporting protocol for TCP/IPNo
Supporting protocol for PROFIBUSYes
Supporting protocol for CANYes
Supporting protocol for KNXNo
Degree of protection (IP)IP55
Supporting protocol for DeviceNetYes
Supporting protocol for INTERBUSNo
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Supporting protocol for SUCONETNo
With PC connectionNo
Mains voltage380 - 480V
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
4-quadrant operation possibleYes
Supporting protocol for INTERBUS-SafetyNo
Number of interfaces PROFINET0
Number of phases output3
Integrated breaking resistanceNo
Application in domestic- and commercial area permittedYes
Max. output at linear load at rated output voltage90kW
Max. output at quadratic load at rated output voltage90kW
Type of converterU converter
Max. output frequency500Hz
Number of phases input3
Application in industrial area permittedYes
Supporting protocol for PROFINET IOYes
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for PROFINET CBANo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for BACnetNo
Max. output voltage480V
Nominal output current I2N173A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

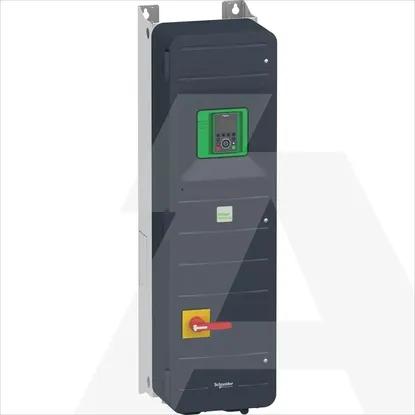

ATV950D90N4E | ATV950 IP55 90KW 400v/480v s Sklopkom
