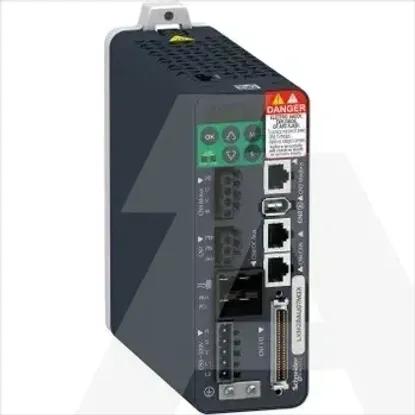

LXM28AU04M3X | LEXIUM28 IO and CAN drive - 400W
Code: 1758327
ManufacturerSchneider Electric
Catalog numberLXM28AU04M3X
TypeLXM28AU04M3X
Category-
EAN code3606480711787
Details
- •Low-voltage switchgear and control gear (automation)
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width55mm
Height150mm
Depth146mm
With control elementYes
Number of digital inputs6
Number of digital outputs2
Number of analogue inputs3
Number of analogue outputs1
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4222
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces other0
With optical interfaceNo
Supporting protocol for TCP/IPNo
Supporting protocol for ASINo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for other bus systemsNo
With PC connectionNo
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Mains frequency50/60 Hz
4-quadrant operation possibleNo
Number of interfaces PROFINET0
Type of converterDirect converter
Integrated breaking resistanceYes
Application in industrial area permittedYes
Application in domestic- and commercial area permittedYes
Max. output frequency16Hz
Max. output at quadratic load at rated output voltage0.4kW
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Max. output voltage240V
Supporting protocol for BACnetNo
Degree of protection (IP)IP20
Mains voltage220 - 220V
Number of phases output3
Number of phases input1
Max. output at linear load at rated output voltage0.4kW
Nominal output current I2N2.6A
