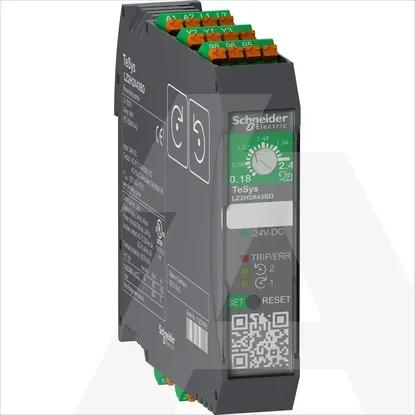

LZ2H2X43FU | Motorski Pok. Reverz. 0,18-2,4A 230VAC

Name: LZ2H2X43FU | Motorski Pok. Reverz. 0,18-2,4A 230VAC
Brand: SCHNEIDER
Price: 218 EUR
Availability: BackOrder

Code: 1758368

ManufacturerSchneider

Catalog numberLZ2H2X43FU

TypeLow-voltage industrial components

EAN code3606485421087

Details

•Low-voltage industrial components
•Motor starter/Motor starter combination
•1 KOM
•SCHNEIDER

Technical specifications

Number of auxiliary contacts as normally closed contact0

Depth113.4mm

Rated operation power at AC-3, 400 V0.75kW

Height107.5mm

With transformerNo

Width22.6mm

Number of command positions0

Number of auxiliary contacts as normally open contact0

Overload release current setting0.18 - 2.4A

Number of indicator lights4

Rated operation current Ie2.4A

Suitable for emergency stopNo

Supporting protocol for PROFIBUSNo

Supporting protocol for DeviceNetNo

Rail mounting possibleYes

Supporting protocol for TCP/IPNo

With fuseNo

Supporting protocol for LONNo

Supporting protocol for SUCONETNo

Release classCLASS 10

Rated control supply voltage Us at AC 60HZ110 - 230V

Supporting protocol for SERCOSNo

Degree of protection (IP)IP20

Supporting protocol for other bus systemsNo

Supporting protocol for ModbusNo

Supporting protocol for CANNo

Supporting protocol for INTERBUS-SafetyNo

Rated control supply voltage Us at DC- - -V

External reset possibleYes

Supporting protocol for AS-Interface Safety at WorkNo

Type of electrical connection of main circuitSpring clamp connection

Rated control supply voltage Us at AC 50HZ110 - 230V

Supporting protocol for Data-HighwayNo

Type of electrical connection for auxiliary- and control current circuitSpring clamp connection

With short-circuit releaseNo

Supporting protocol for INTERBUSNo

Supporting protocol for ASINo

Supporting protocol for EtherNet/IPNo

Supporting protocol for SafetyBUS pNo

Supporting protocol for PROFINET IONo

Voltage type for actuatingAC

Supporting protocol for PROFINET CBANo

Supporting protocol for DeviceNet SafetyNo

Type of motor starterReversing starter

Rated operation power at AC-3, 230 V, 3-phase0.37kW

Rated conditional short-circuit current, type 1, 600 Y/347 V-A

Rated conditional short-circuit current, type 1, 480 Y/277 V-A

Ambient temperature, upper operating limit70°C

Rated conditional short-circuit current, type 2, 230 V-A

Rated power, 575 V, 60 Hz, 3-phase-kW

Rated conditional short-circuit current, type 2, 400 V-A

Rated power, 460 V, 60 Hz, 3-phase0.75kW

Supporting protocol for PROFIsafeNo

Temperature compensated overload protectionYes

Rated operation current at AC-3, 400 V2.4A

Supporting protocol for Foundation FieldbusNo
