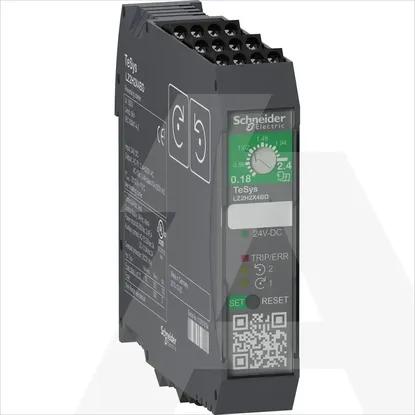

LZ2H2X4BD | Motorski Pok. Reverz. 0,18-2,4A 24VDC

Name: LZ2H2X4BD | Motorski Pok. Reverz. 0,18-2,4A 24VDC
Brand: SCHNEIDER
Price: 219 EUR
Availability: BackOrder

Code: 1758369

ManufacturerSchneider

Catalog numberLZ2H2X4BD

TypeLow-voltage industrial components

EAN code3606485421056

Details

•Low-voltage industrial components
•Motor starter/Motor starter combination
•1 KOM
•SCHNEIDER

Technical specifications

Suitable for emergency stopNo

Number of auxiliary contacts as normally closed contact0

Supporting protocol for LONNo

Rated operation current Ie2.4A

Depth113.4mm

With transformerNo

Supporting protocol for TCP/IPNo

Supporting protocol for DeviceNetNo

Rated operation power at AC-3, 400 V0.75kW

Supporting protocol for ASINo

Number of indicator lights4

Height106.5mm

Number of command positions0

Width22.6mm

Number of auxiliary contacts as normally open contact0

Overload release current setting0.18 - 2.4A

Supporting protocol for Data-HighwayNo

Supporting protocol for CANNo

Supporting protocol for ModbusNo

Supporting protocol for INTERBUSNo

Supporting protocol for PROFIBUSNo

Supporting protocol for SUCONETNo

Rated control supply voltage Us at DC24 - 24V

Rated control supply voltage Us at AC 60HZ- - -V

Supporting protocol for DeviceNet SafetyNo

Rated control supply voltage Us at AC 50HZ- - -V

Rail mounting possibleYes

Degree of protection (IP)IP20

Supporting protocol for SERCOSNo

With short-circuit releaseNo

Supporting protocol for INTERBUS-SafetyNo

External reset possibleYes

With fuseNo

Release classCLASS 10

Supporting protocol for other bus systemsNo

Supporting protocol for EtherNet/IPNo

Voltage type for actuatingDC

Supporting protocol for AS-Interface Safety at WorkNo

Rated operation power at AC-3, 230 V, 3-phase0.37kW

Supporting protocol for PROFIsafeNo

Type of electrical connection of main circuitScrew connection

Supporting protocol for SafetyBUS pNo

Supporting protocol for PROFINET IONo

Supporting protocol for PROFINET CBANo

Type of electrical connection for auxiliary- and control current circuitScrew connection

Type of motor starterReversing starter

Supporting protocol for Foundation FieldbusNo

Temperature compensated overload protectionYes

Rated power, 575 V, 60 Hz, 3-phase-kW

Rated power, 460 V, 60 Hz, 3-phase0.75kW

Ambient temperature, upper operating limit70°C

Rated conditional short-circuit current, type 1, 600 Y/347 V-A

Rated operation current at AC-3, 400 V2.4A

Rated conditional short-circuit current, type 2, 230 V-A

Rated conditional short-circuit current, type 2, 400 V-A

Rated conditional short-circuit current, type 1, 480 Y/277 V-A
