Details
- •Low-voltage industrial components
- •Motor starter/Motor starter combination
- •1 KOM
- •SCHNEIDER
Technical specifications
With transformerNo
Depth113.4mm
Width22.6mm
Height107.5mm
Rated operation power at AC-3, 400 V0.75kW
Number of command positions0
Overload release current setting0.18 - 2.4A
Supporting protocol for ASINo
Number of auxiliary contacts as normally open contact0
Suitable for emergency stopYes
Number of auxiliary contacts as normally closed contact0
Supporting protocol for Data-HighwayNo
Number of indicator lights3
Supporting protocol for ModbusNo
Supporting protocol for TCP/IPNo
Supporting protocol for LONNo
Supporting protocol for PROFIBUSNo
Supporting protocol for INTERBUSNo
Supporting protocol for CANNo
Rated operation current Ie2.4A
Type of electrical connection of main circuitSpring clamp connection
External reset possibleYes
Degree of protection (IP)IP20
Supporting protocol for EtherNet/IPNo
Rated control supply voltage Us at DC24 - 24V
Release classCLASS 10
Type of electrical connection for auxiliary- and control current circuitSpring clamp connection
Rated control supply voltage Us at AC 60HZ- - -V
With fuseNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for SERCOSNo
Supporting protocol for PROFINET CBANo
Rail mounting possibleYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetNo
Supporting protocol for PROFINET IONo
With short-circuit releaseNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for other bus systemsNo
Rated control supply voltage Us at AC 50HZ- - -V
Supporting protocol for DeviceNet SafetyNo
Voltage type for actuatingDC
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Rated power, 460 V, 60 Hz, 3-phase0.75kW
Rated conditional short-circuit current, type 1, 600 Y/347 V-A
Rated conditional short-circuit current, type 2, 400 V-A
Rated operation current at AC-3, 400 V2.4A
Type of motor starterDirect online starter (DOL)
Rated power, 575 V, 60 Hz, 3-phase-kW
Rated conditional short-circuit current, type 2, 230 V-A
Ambient temperature, upper operating limit70°C
Rated conditional short-circuit current, type 1, 480 Y/277 V-A
Rated operation power at AC-3, 230 V, 3-phase0.37kW
Temperature compensated overload protectionYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

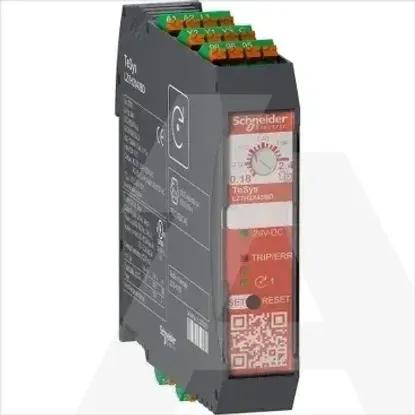

LZ7H2X43BD | Motorski Pok. Dir. 0,18-2,4A 24VDC FS
