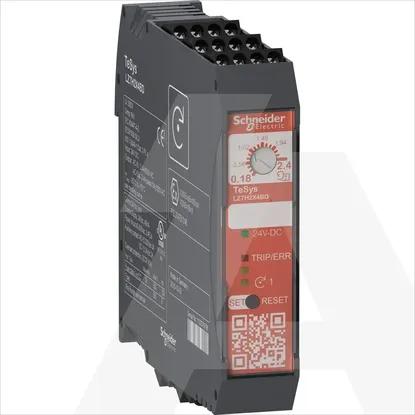

LZ7H6X5BD | Motorski Pok. Dir. 1,5-6,5A 24VDC FS

Name: LZ7H6X5BD | Motorski Pok. Dir. 1,5-6,5A 24VDC FS
Brand: SCHNEIDER
Price: 226 EUR
Availability: BackOrder

Code: 1758381

ManufacturerSchneider Electric

Catalog numberLZ7H6X5BD

TypeLow-voltage industrial components

EAN code3606485421179

Details

•Low-voltage industrial components
•Motor starter/Motor starter combination
•1 KOM
•SCHNEIDER

Technical specifications

Depth113.4mm

Height106.5mm

With transformerNo

Width22.6mm

Number of command positions0

Number of auxiliary contacts as normally open contact0

Suitable for emergency stopYes

Supporting protocol for ASINo

Number of auxiliary contacts as normally closed contact0

Number of indicator lights3

Supporting protocol for TCP/IPNo

Supporting protocol for PROFIBUSNo

Supporting protocol for LONNo

Rated control supply voltage Us at AC 60HZ- - -V

Supporting protocol for SUCONETNo

External reset possibleYes

Rail mounting possibleYes

Supporting protocol for INTERBUSNo

Supporting protocol for DeviceNetNo

Supporting protocol for Data-HighwayNo

Rated control supply voltage Us at AC 50HZ- - -V

Supporting protocol for ModbusNo

Supporting protocol for other bus systemsNo

Supporting protocol for Foundation FieldbusNo

Supporting protocol for INTERBUS-SafetyNo

Type of electrical connection for auxiliary- and control current circuitScrew connection

Supporting protocol for DeviceNet SafetyNo

Type of electrical connection of main circuitScrew connection

Supporting protocol for AS-Interface Safety at WorkNo

Supporting protocol for SERCOSNo

With short-circuit releaseNo

Release classCLASS 10

Supporting protocol for PROFINET CBANo

With fuseNo

Supporting protocol for EtherNet/IPNo

Supporting protocol for CANNo

Supporting protocol for PROFINET IONo

Supporting protocol for SafetyBUS pNo

Rated power, 575 V, 60 Hz, 3-phase-kW

Voltage type for actuatingDC

Rated conditional short-circuit current, type 1, 600 Y/347 V-A

Supporting protocol for PROFIsafeNo

Temperature compensated overload protectionYes

Rated conditional short-circuit current, type 2, 230 V-A

Rated conditional short-circuit current, type 2, 400 V-A

Rated operation power at AC-3, 230 V, 3-phase1.5kW

Ambient temperature, upper operating limit70°C

Rated conditional short-circuit current, type 1, 480 Y/277 V-A

Rated power, 460 V, 60 Hz, 3-phase3kW

Rated operation power at AC-3, 400 V3kW

Rated operation current Ie9A

Overload release current setting1.5 - 6.5A

Degree of protection (IP)IP20

Rated control supply voltage Us at DC24 - 24V

Type of motor starterDirect online starter (DOL)

Rated operation current at AC-3, 400 V6.5A
