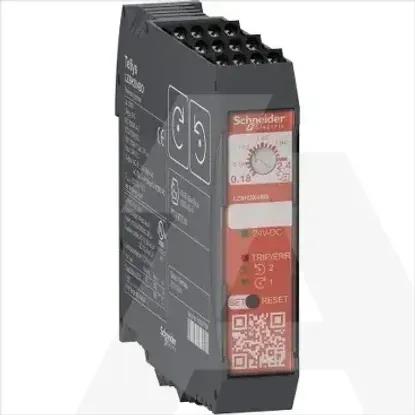

LZ8H6X5BD | Motorski Pok. Reverz. 1,5-6,5A 24VDC FS

Name: LZ8H6X5BD | Motorski Pok. Reverz. 1,5-6,5A 24VDC FS
Brand: SCHNEIDER
Price: 232 EUR
Availability: BackOrder

Code: 1758389

ManufacturerSchneider

Catalog numberLZ8H6X5BD

TypeLow-voltage industrial components

EAN code3606485421254

Details

•Low-voltage industrial components
•Motor starter/Motor starter combination
•1 KOM
•SCHNEIDER

Technical specifications

Depth113.4mm

Height106.5mm

Width22.6mm

With transformerNo

Rated operation power at AC-3, 400 V3kW

Number of auxiliary contacts as normally closed contact0

Number of command positions0

Suitable for emergency stopYes

Number of auxiliary contacts as normally open contact0

Number of indicator lights4

Rated operation current Ie9A

Overload release current setting1.5 - 6.5A

Supporting protocol for LONNo

Supporting protocol for Data-HighwayNo

Supporting protocol for DeviceNetNo

Rated control supply voltage Us at AC 60HZ- - -V

Supporting protocol for SUCONETNo

Rail mounting possibleYes

Rated control supply voltage Us at DC24 - 24V

External reset possibleYes

Supporting protocol for CANNo

Supporting protocol for PROFIBUSNo

Rated control supply voltage Us at AC 50HZ- - -V

Supporting protocol for INTERBUSNo

Supporting protocol for TCP/IPNo

Supporting protocol for ASINo

Supporting protocol for ModbusNo

Supporting protocol for other bus systemsNo

Supporting protocol for SafetyBUS pNo

Supporting protocol for PROFINET IONo

Supporting protocol for PROFIsafeNo

Rated power, 575 V, 60 Hz, 3-phase-kW

Supporting protocol for SERCOSNo

Voltage type for actuatingDC

Type of electrical connection of main circuitScrew connection

Supporting protocol for AS-Interface Safety at WorkNo

Rated operation power at AC-3, 230 V, 3-phase1.5kW

Rated operation current at AC-3, 400 V6.5A

Rated power, 460 V, 60 Hz, 3-phase3kW

Type of motor starterReversing starter

Supporting protocol for PROFINET CBANo

Supporting protocol for EtherNet/IPNo

Degree of protection (IP)IP20

Supporting protocol for INTERBUS-SafetyNo

Release classCLASS 10

With short-circuit releaseNo

Supporting protocol for DeviceNet SafetyNo

Type of electrical connection for auxiliary- and control current circuitScrew connection

Supporting protocol for Foundation FieldbusNo

With fuseNo

Ambient temperature, upper operating limit70°C

Rated conditional short-circuit current, type 2, 400 V-A

Temperature compensated overload protectionYes

Rated conditional short-circuit current, type 2, 230 V-A

Rated conditional short-circuit current, type 1, 600 Y/347 V-A

Rated conditional short-circuit current, type 1, 480 Y/277 V-A
