Details
- •Cables
- •Power cable < 1 kV, for moving application
- •1 KOM
- •SCHNEIDER
Technical specifications
Permitted cable outer temperature during assembling/handling-16 - 65°C
Cable height approx.3mm
Permitted cable outer temperature after assembling without vibration-10 - 60°C
Conductor surfaceOther
Conductor materialCopper
Material core insulationPolyamide (PA)
Core identification according to HD 308 S2No
Nominal cross section conductor1.5mm²
Stranding elementTriple
Screen over strandingNone
Specification core insulationPolyethylene (PE)
Suspension elementOther
Drain wireNo
Colour outer sheathBlack
With protective conductorYes
Conductor categoryClass 5 = flexible
Screen over stranding elementNone
Armouring/reinforcementNone
Torsion resistantYes
Protective barrierRubber - ethylene propylene rubber (EPR)
Cable geometryRound
ScreenNo
Flame retardant according to IEC 60332-3-25 (Cat D)Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R)Yes
Core identificationColour
Flame retardant according to IEC 60332-3-23 (Cat B)Yes
Flame retardant according to IEC 60332-3-22 (Cat A)No
Material reinforcementCopper
Low smoke (according to IEC 61034-2)Yes
Material outer sheathOther
Number of cores3
Nominal cross section conductor (AWG)10kcmil
Flame retardant according to IEC 60332-1-2Yes
Specification material outer sheathPolyethylene (PE)
Flame retardant according to IEC 60332-3-24 (Cat C)Yes
Smoke development class according to EN 13501-6s2
Halogen free according to IEC 60754-3Yes
Halogen free according to IEC 60754-1Yes
Reaction-to-fire class according to EN 13501-6Eca
Halogen free (according to IEC 60754-2)Yes
Euro class flaming droplets/particles according to EN 13501-6d0
AWG sizeOther
Oil resistant (according to EN 60811-404)Yes
Euro class acidity according to EN 13501-6a1
Cable width approx.3000mm
Nominal voltage U0250V
Nominal voltage U250V
Outer diameter approx.14mm
Shape of conductorRound
Low temperature resistant (according to EN 60811-504+505+506)Yes
Max. conductor temperature65°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

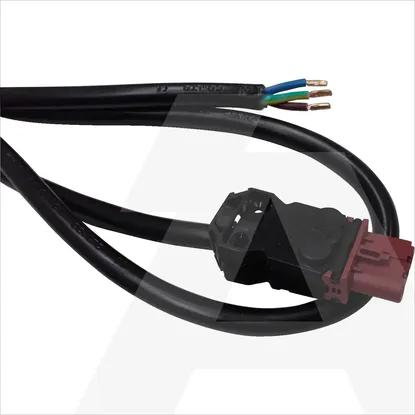

NSYLAM3MDCUL | Kabel Napajalni za LED Svjet. 3M UL DC
