Details
- •Terminal blocks
- •Feed-through terminal block
- •10 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
ColourBlue
Depth70.5mm
Operating temperature-40 - 130°C
Width20.3mm
Height87.5mm
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Number of clamp positions per level2
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Connectable conductor cross section solid-core16 - 95mm²
Internally connected stagesNo
Inflammability class of insulation material according to with UL94V0
Connectable conductor cross section fine-strand without cable end sleeve25 - 70mm²
Closing plate requiredYes
Material insulation bodyThermoplastic
Rated current In192A
Connectable conductor cross section multi-wired- - -mm²
Explosion-tested version 'Ex e'No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

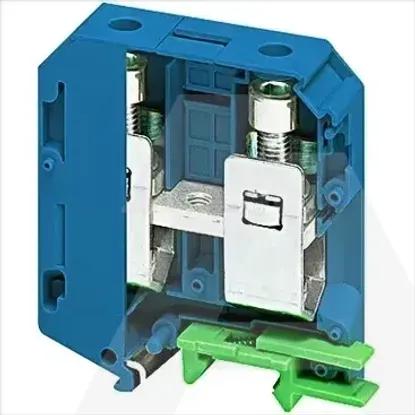

NSYTRV702BL | Stez. Vijcana 70mm2 1P 1x1 Plava
