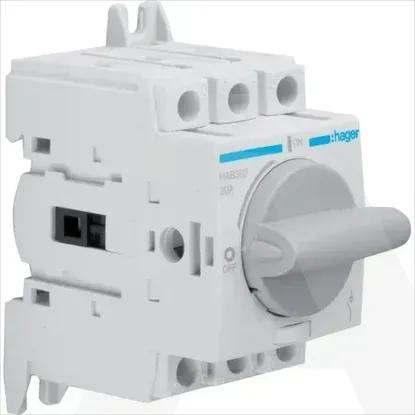

HAB302
Code: 1761762
ManufacturerHager
Catalog numberHAB302
TypeSwitch disconnector
CategorySwitch disconnector
EAN code3250613140236
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Version as main switchYes
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq50kA
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact0
Rated operating voltage380 - 415V
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
InterlockableYes
Degree of protection (IP), front sideIP20
Rated short-time withstand current lcw1.26kA
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V9kW
Version as safety switchYes
Colour control elementGrey
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Switching power at 400 V13kW
Voltage release optionalNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V20A
Version as reversing switchNo
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Rated permanent current Iu20A
Number of poles3
Max. rated operation voltage Ue AC415V
