Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated operating voltage380 - 415V
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Conditioned rated short-circuit current Iq50kA
Rated permanent current Iu32A
Rated operation power at AC-3, 400 V-kW
InterlockableYes
Type of electrical connection of main circuitScrew connection
Number of poles3
Rated operation power at AC-23, 400 V14kW
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Version as maintenance-/service switchYes
Version as main switchYes
Version as safety switchYes
Suitable for front mounting 4-holeNo
Colour control elementGrey
Suitable for floor mountingYes
Rated short-time withstand current lcw1.26kA
Rated permanent current at AC-21, 400 V32A
Device constructionComplete device in housing
Max. rated operation voltage Ue AC415V
Suitable for distribution board installationYes
Voltage release optionalNo
Suitable for front mounting centreNo
Switching power at 400 V21kW
Suitable for intermediate mountingNo
Version as reversing switchNo
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

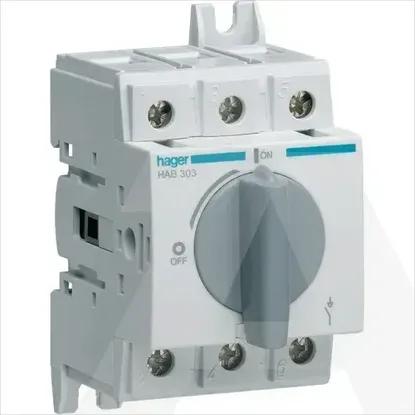

HAB303
