Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
InterlockableYes
Rated short-time withstand current lcw1.26kA
Type of control elementShort thumb-grip
Suitable for front mounting centreNo
Conditioned rated short-circuit current Iq50kA
Motor drive integratedNo
Version as emergency stop installationNo
Version as main switchYes
Rated operation power at AC-3, 400 V-kW
Colour control elementGrey
Suitable for front mounting 4-holeNo
Rated permanent current Iu40A
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Number of auxiliary contacts as normally closed contact0
Number of poles3
Rated operating voltage380 - 415V
Suitable for distribution board installationYes
Version as safety switchYes
Rated operation power at AC-23, 400 V18kW
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC415V
Suitable for intermediate mountingNo
Version as reversing switchNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V40A
Switching power at 400 V26kW
Device constructionComplete device in housing
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

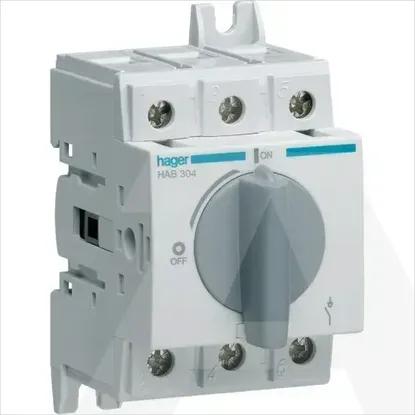

HAB304
