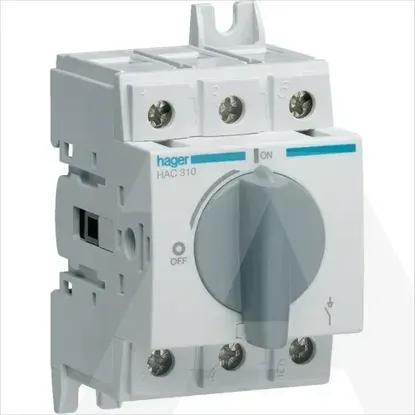

HAC310
Code: 1761772
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Number of poles3
Type of control elementShort thumb-grip
Rated permanent current Iu100A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Device constructionComplete device in housing
Rated operation power at AC-3, 400 V-kW
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Degree of protection (IP), front sideIP20
Max. rated operation voltage Ue AC415V
Conditioned rated short-circuit current Iq25kA
Rated operating voltage380 - 415V
Colour control elementGrey
Rated short-time withstand current lcw1.5kA
Rated operation power at AC-23, 400 V36kW
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as safety switchYes
InterlockableYes
Switching power at 400 V65kW
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V100A
Version as main switchYes
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
