Details
- •Low-voltage industrial components

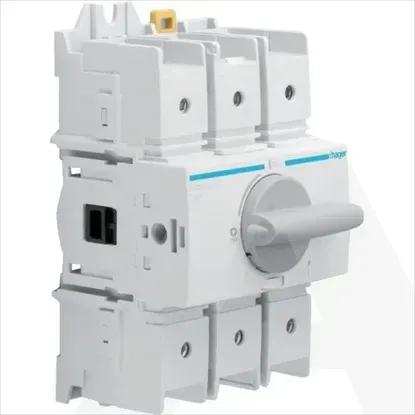

- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles3
Rated permanent current Iu125A
Rated operating voltage380 - 415V
Number of auxiliary contacts as change-over contact0
Type of control elementShort thumb-grip
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Rated short-time withstand current lcw2.75kA
InterlockableYes
Motor drive integratedNo
Suitable for distribution board installationYes
Conditioned rated short-circuit current Iq25kA
Version as safety switchYes
Rated operation power at AC-23, 400 V56kW
Version as main switchYes
Version as emergency stop installationNo
Suitable for front mounting 4-holeNo
Colour control elementGrey
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP20
Switching power at 400 V82kW
Rated permanent current at AC-21, 400 V125A
Voltage release optionalNo
Device constructionComplete device in housing
Max. rated operation voltage Ue AC415V
Motor drive optionalNo
Suitable for intermediate mountingNo
Version as reversing switchNo
