Details
- •Low-voltage industrial components

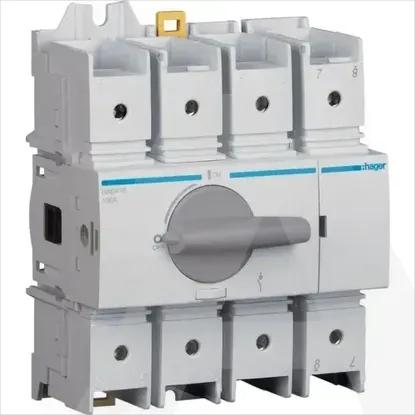

- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Number of poles4
Rated operation power at AC-3, 400 V-kW
Rated operating voltage380 - 415V
Rated permanent current Iu100A
Number of auxiliary contacts as normally closed contact0
Version as main switchYes
Type of control elementShort thumb-grip
Version as safety switchYes
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally open contact0
InterlockableYes
Rated operation power at AC-23, 400 V45kW
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Motor drive integratedNo
Conditioned rated short-circuit current Iq25kA
Degree of protection (IP), front sideIP20
Colour control elementGrey
Suitable for floor mountingYes
Rated short-time withstand current lcw2.75kA
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Motor drive optionalNo
Suitable for front mounting centreNo
Voltage release optionalNo
Max. rated operation voltage Ue AC415V
Device constructionComplete device in housing
Switching power at 400 V65kW
Version as reversing switchNo
Rated permanent current at AC-21, 400 V100A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
HAD410
