Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of poles3
Rated permanent current Iu100A
Rated operating voltage380 - 415V
Conditioned rated short-circuit current Iq100kA
Degree of protection (IP), front sideIP20
Version as safety switchYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V45kW
Type of electrical connection of main circuitScrew connection
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Motor drive integratedNo
InterlockableYes
Version as main switchYes
Colour control elementGrey
Suitable for floor mountingYes
Rated short-time withstand current lcw4kA
Version as reversing switchNo
Switching power at 400 V65kW
Max. rated operation voltage Ue AC415V
Type of control elementShort thumb-grip
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Motor drive optionalNo
Rated permanent current at AC-21, 400 V100A
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

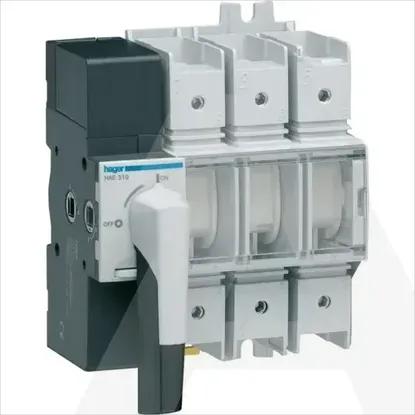

HAE310
