Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •HAGER

Technical specifications

Version as safety switchYes
Version as main switchYes
Number of switches1
Version as emergency stop installationNo
Version as reversing switchNo
Version as maintenance-/service switchYes
Rated operating voltage380 - 415V
Rated permanent current at AC-23, 400 V100A
Rated permanent current Iu100A
Switching power at 400 V65kW
Rated operation power at AC-23, 400 V45kW
Conditioned rated short-circuit current Iq100kA
Rated permanent current at AC-21, 400 V100A
Number of auxiliary contacts as normally closed contact0
Max. rated operation voltage Ue AC415V
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated short-time withstand current lcw4kA
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Colour control elementGrey
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Number of poles4
Voltage release optionalNo
Suitable for distribution board installationYes
Suitable for floor mountingYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Degree of protection (IP), front sideIP20
Degree of protection (NEMA)Other
InterlockableYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

HAE410

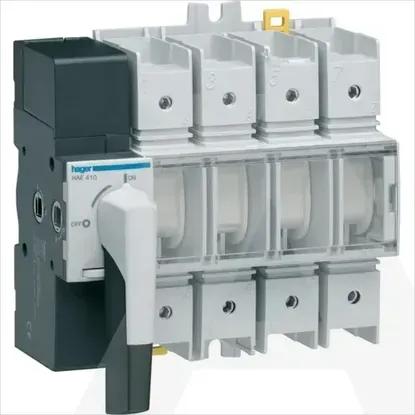

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • HAGER

Technical specifications

Version as safety switch

Version as main switch

Number of switches

1

Version as emergency stop installation

Version as reversing switch

Version as maintenance-/service switch

Rated operating voltage

380 .. 415V

Rated permanent current at AC-23, 400 V

100A

Rated permanent current Iu

100A

Switching power at 400 V

65kW

Rated operation power at AC-23, 400 V

45kW

Conditioned rated short-circuit current Iq

100kA

Rated permanent current at AC-21, 400 V

100A

Number of auxiliary contacts as normally closed contact

0

Max. rated operation voltage Ue AC

415V

Motor drive optional

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Rated short-time withstand current lcw

4kA

Device construction

Built-in device fixed built-in technique

Suitable for front mounting centre

Colour control element

Grey

Suitable for front mounting 4-hole

Suitable for intermediate mounting

Number of poles

4

Voltage release optional

Suitable for distribution board installation

Suitable for floor mounting

Motor drive integrated

Type of electrical connection of main circuit

Screw connection

Type of control element

Short thumb-grip

Degree of protection (IP), front side

IP20

Degree of protection (NEMA)

Other

Interlockable
