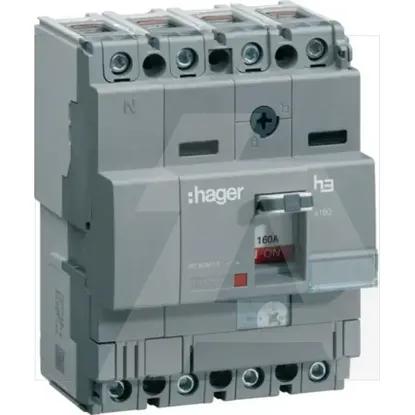

HCA161H
Code: 1761797
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Switching power at 400 V105kW
Number of switches1
Version as maintenance-/service switchYes
Version as main switchYes
Rated short-time withstand current lcw2kA
Version as safety switchNo
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V163kW
Number of auxiliary contacts as change-over contact0
Voltage release optionalYes
Rated operating voltage220 - 690V
Version as emergency stop installationYes
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V160A
Rated permanent current Iu160A
Rated permanent current at AC-23, 400 V160A
Number of auxiliary contacts as normally closed contact0
Number of poles4
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Colour control elementGrey
Type of control elementToggle
InterlockableYes
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP40
Depth96mm
Width100mm
Height130mm
Related products
