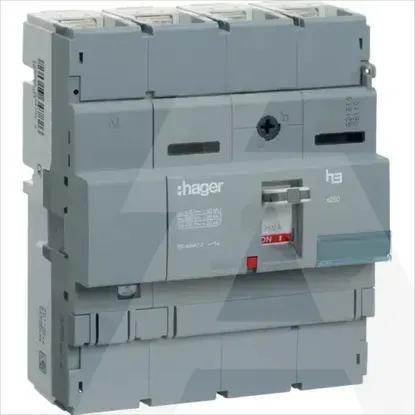

HCB251H
Code: 1761800
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Version as main switchYes
Version as safety switchYes
Version as reversing switchNo
Version as emergency stop installationYes
Rated permanent current at AC-21, 400 V250A
Version as maintenance-/service switchYes
Rated permanent current Iu250A
Number of switches1
Rated operating voltage220 - 415V
Rated short-time withstand current lcw3kA
Rated permanent current at AC-23, 400 V0A
Switching power at 400 V164kW
Number of poles4
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-23, 400 V112kW
Max. rated operation voltage Ue AC415V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Motor drive optionalYes
Voltage release optionalYes
Suitable for distribution board installationYes
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Motor drive integratedNo
Colour control elementBlack
Suitable for front mounting centreNo
Type of control elementToggle
InterlockableYes
Degree of protection (IP), front sideIP40
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitCable clamp
Height165mm
Suitable for floor mountingYes
Width140mm
Depth96mm
