Details
- •Low-voltage industrial components

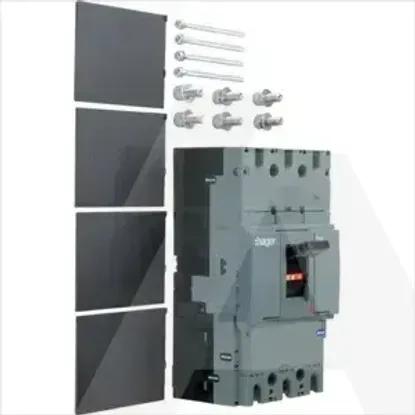

- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Rated permanent current Iu630A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Type of electrical connection of main circuitCable clamp
Number of switches1
Version as main switchYes
Type of control elementToggle
Degree of protection (IP), front sideIP40
Number of poles3
Rated operating voltage220 - 690V
Rated operation power at AC-23, 400 V283kW
Rated short-time withstand current lcw5kA
Version as maintenance-/service switchYes
InterlockableYes
Version as safety switchYes
Suitable for distribution board installationYes
Colour control elementBlack
Voltage release optionalYes
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
Switching power at 400 V414kW
Rated permanent current at AC-21, 400 V630A
Suitable for front mounting centreNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
HCD630H
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- HAGER
DetailsTechnical specificationsRelated products
Technical specifications
Rated permanent current Iu
630A
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Rated operation power at AC-3, 400 V
-kW
Version as emergency stop installation
Number of auxiliary contacts as normally open contact
0
Conditioned rated short-circuit current Iq
-kA
Motor drive integrated
Type of electrical connection of main circuit
Cable clamp
Number of switches
1
Version as main switch
Type of control element
Toggle
Degree of protection (IP), front side
IP40
Number of poles
3
Rated operating voltage
220 .. 690V
Rated operation power at AC-23, 400 V
283kW
Rated short-time withstand current lcw
5kA
Version as maintenance-/service switch
Interlockable
Version as safety switch
Suitable for distribution board installation
Colour control element
Black
Voltage release optional
Suitable for floor mounting
Suitable for front mounting 4-hole
Version as reversing switch
Max. rated operation voltage Ue AC
690V
Suitable for intermediate mounting
Degree of protection (NEMA)
Other
Device construction
Built-in device fixed built-in technique
Motor drive optional
Switching power at 400 V
414kW
Rated permanent current at AC-21, 400 V
630A
Suitable for front mounting centre
