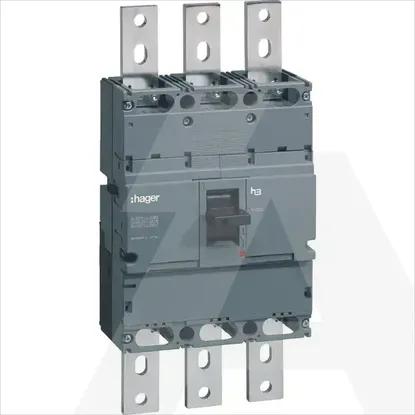

HCE800H
Code: 1761806
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Version as main switchYes
Version as safety switchYes
Version as maintenance-/service switchYes
Rated permanent current Iu800A
Rated permanent current at AC-21, 400 V800A
Number of switches1
Version as reversing switchNo
Rated operation power at AC-23, 400 V360kW
Rated short-time withstand current lcw10kA
Switching power at 400 V526kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Max. rated operation voltage Ue AC690V
Rated operating voltage220 - 690V
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
Number of auxiliary contacts as normally open contact0
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for floor mountingYes
InterlockableYes
Type of control elementToggle
Voltage release optionalYes
Suitable for intermediate mountingNo
Colour control elementBlack
With pre-assembled cablingNo
Degree of protection (IP), front sideIP40
Type of electrical connection of main circuitCable clamp
Width210mm
Depth145mm
Height435mm
Degree of protection (NEMA)Other
