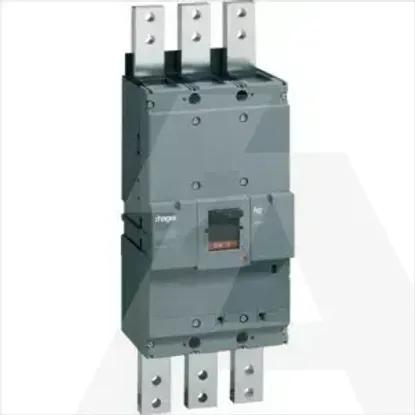

HCF980H
Code: 1761810
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Version as main switchYes
Version as emergency stop installationNo
Rated permanent current Iu1250A
Version as maintenance-/service switchYes
Number of switches1
Version as reversing switchNo
Rated operating voltage220 - 690V
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V1250A
Rated short-time withstand current lcw15kA
Version as safety switchYes
Rated operation power at AC-23, 400 V562kW
Switching power at 400 V822kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Motor drive optionalYes
Suitable for floor mountingYes
Suitable for distribution board installationYes
Number of auxiliary contacts as normally open contact0
Colour control elementBlack
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitCable clamp
Type of control elementToggle
With pre-assembled cablingNo
InterlockableYes
Degree of protection (IP), front sideIP40
Degree of protection (NEMA)Other
Width210mm
Voltage release optionalYes
Height570mm
Depth191mm
