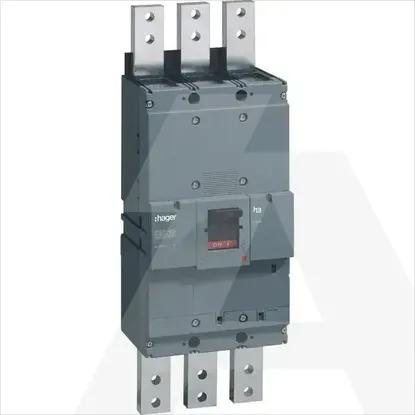

HCF990H
Code: 1761812
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Version as main switchYes
Version as safety switchYes
Version as reversing switchNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Number of switches1
Max. rated operation voltage Ue AC690V
Rated permanent current Iu1600A
Rated operation power at AC-23, 400 V720kW
Rated operating voltage220 - 690V
Number of poles3
Number of auxiliary contacts as normally open contact0
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Switching power at 400 V1053kW
Motor drive optionalYes
Suitable for floor mountingYes
Motor drive integratedNo
Voltage release optionalYes
Number of auxiliary contacts as normally closed contact0
Rated permanent current at AC-21, 400 V1600A
Rated short-time withstand current lcw20kA
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Colour control elementBlack
Type of control elementToggle
InterlockableYes
With pre-assembled cablingNo
Type of electrical connection of main circuitCable clamp
Degree of protection (IP), front sideIP40
Degree of protection (NEMA)Other
Width210mm
Height570mm
Depth191mm
Related products
