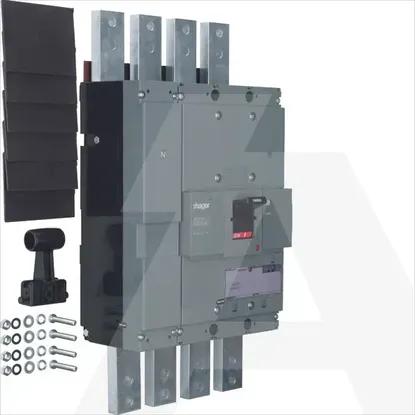

HCF991H
Code: 1761813
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Version as maintenance-/service switchYes
Version as main switchYes
Version as emergency stop installationNo
Number of switches1
Version as safety switchYes
Version as reversing switchNo
Rated operating voltage220 - 690V
Rated permanent current Iu1600A
Rated permanent current at AC-21, 400 V1600A
Rated operation power at AC-23, 400 V720kW
Switching power at 400 V1053kW
Number of poles4
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated short-time withstand current lcw20kA
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Motor drive optionalYes
Voltage release optionalYes
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Colour control elementBlack
Type of control elementToggle
InterlockableYes
Degree of protection (IP), front sideIP40
Type of electrical connection of main circuitCable clamp
With pre-assembled cablingNo
Max. rated operation voltage Ue AC690V
Height570mm
Degree of protection (NEMA)Other
Depth191mm
Width280mm
Related products
