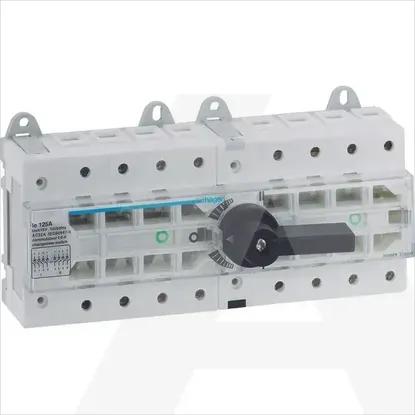

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq50kA
Rated permanent current Iu125A
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Colour control elementBlack
Number of auxiliary contacts as change-over contact0
Version as safety switchYes
Rated operating voltage380 - 690V
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Rated short-time withstand current lcw2.5kA
Suitable for floor mountingYes
Number of poles4
Rated operation power at AC-23, 400 V28kW
Degree of protection (IP), front sideIP20
Type of control elementShort thumb-grip
Number of switches1
Version as emergency stop installationNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Version as main switchYes
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V63A
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchYes
Rated permanent current at AC-21, 400 V125A
Degree of protection (NEMA)Other
Switching power at 400 V82kW
Voltage release optionalNo
