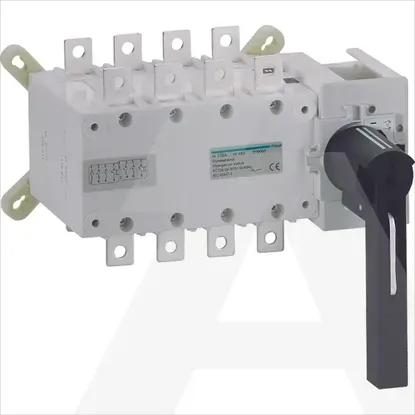

HI451
Code: 1761846
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Rated operation power at AC-3, 400 V-kW
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationNo
Version as reversing switchYes
Number of switches1
Rated permanent current Iu125A
Rated short-time withstand current lcw12kA
Rated permanent current at AC-21, 400 V125A
Switching power at 400 V82kW
Rated operation power at AC-23, 400 V56kW
Rated permanent current at AC-23, 400 V125A
Rated operating voltage380 - 690V
Max. rated operation voltage Ue AC690V
Conditioned rated short-circuit current Iq100kA
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Number of poles4
Motor drive optionalNo
Number of auxiliary contacts as normally closed contact0
Voltage release optionalNo
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Colour control elementBlack
Type of control elementLong turning handle
InterlockableYes
Type of electrical connection of main circuitCable clamp
Width251mm
Degree of protection (IP), front sideIP00
Suitable for intermediate mountingNo
Height135mm
Degree of protection (NEMA)Other
Depth218mm
