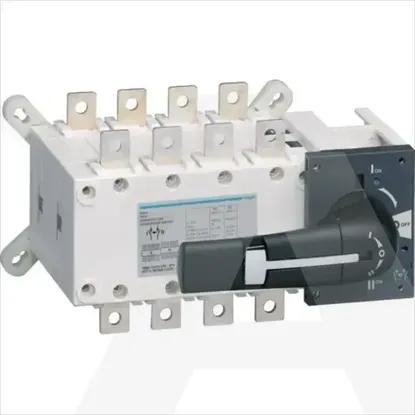

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Height135mm
Rated operation power at AC-3, 400 V-kW
Width251mm
Depth218mm
Number of poles4
Version as emergency stop installationNo
Type of control elementLong turning handle
Type of electrical connection of main circuitCable clamp
InterlockableYes
Conditioned rated short-circuit current Iq100kA
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Motor drive integratedNo
Number of switches1
Rated operating voltage380 - 690V
Rated permanent current Iu160A
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
Version as safety switchYes
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Switching power at 400 V105kW
Suitable for front mounting centreNo
Rated short-time withstand current lcw12kA
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Rated operation power at AC-23, 400 V72kW
Device constructionBuilt-in device fixed built-in technique
Version as main switchYes
Rated permanent current at AC-21, 400 V160A
Colour control elementBlack
Version as reversing switchYes
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V160A
