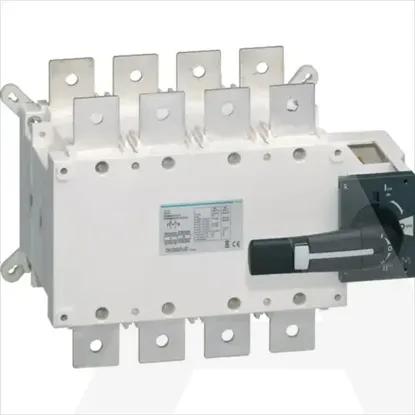

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Rated operation power at AC-3, 400 V-kW
Version as reversing switchYes
Version as main switchYes
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC690V
Number of switches1
Rated permanent current Iu630A
Rated permanent current at AC-21, 400 V630A
Rated permanent current at AC-23, 400 V500A
Rated short-time withstand current lcw17kA
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Switching power at 400 V414kW
Rated operation power at AC-23, 400 V225kW
Rated operating voltage380 - 690V
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Voltage release optionalNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Number of poles4
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Colour control elementBlack
Type of control elementLong turning handle
InterlockableYes
Type of electrical connection of main circuitCable clamp
Degree of protection (IP), front sideIP00
Width379mm
Height260mm
Depth295mm
Version as safety switchYes
Degree of protection (NEMA)Other
