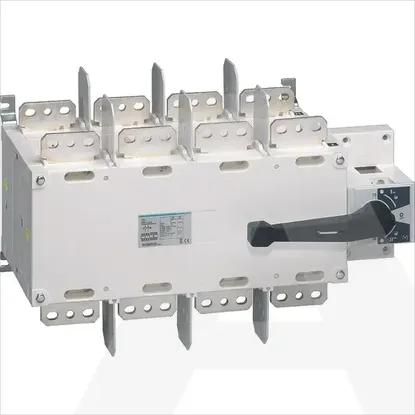

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Number of poles4
InterlockableYes
Number of auxiliary contacts as normally closed contact0
Rated operating voltage380 - 690V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Conditioned rated short-circuit current Iq100kA
Rated permanent current Iu1600A
Rated operation power at AC-3, 400 V-kW
Version as main switchYes
Version as emergency stop installationNo
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitCable clamp
Suitable for distribution board installationYes
Type of control elementLong turning handle
Suitable for front mounting centreNo
Motor drive integratedNo
Suitable for floor mountingYes
Version as safety switchYes
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V562kW
Rated short-time withstand current lcw78kA
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V1053kW
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Version as reversing switchYes
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
