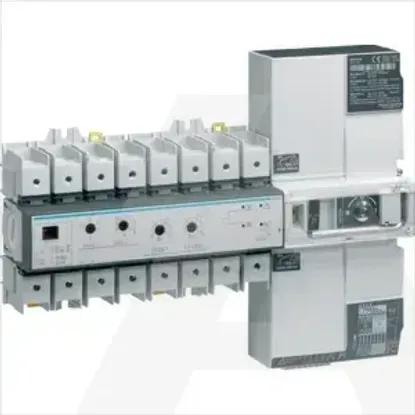

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally open contact0
Motor drive integratedYes
Number of poles4
Rated operating voltage380 - 415V
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu63A
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Number of switches1
Rated operation power at AC-23, 400 V28kW
Version as maintenance-/service switchYes
Rated operation power at AC-3, 400 V-kW
InterlockableYes
Version as main switchYes
Degree of protection (IP), front sideIP20
Version as safety switchYes
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw7kA
Suitable for distribution board installationYes
Colour control elementOther
Suitable for floor mountingYes
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V63A
Switching power at 400 V41kW
Suitable for front mounting centreNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
Max. rated operation voltage Ue AC415V
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Version as reversing switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
HIC406A
