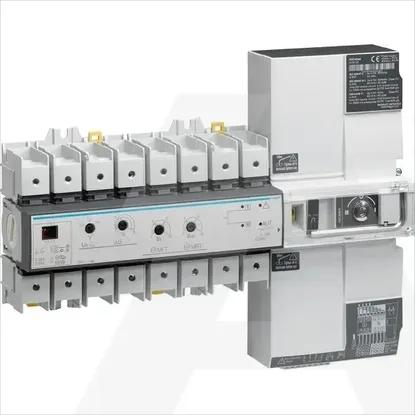

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Number of poles4
Number of auxiliary contacts as normally open contact0
Rated operating voltage380 - 415V
Conditioned rated short-circuit current Iq50kA
Rated permanent current Iu80A
Degree of protection (IP), front sideIP20
Number of switches1
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V36kW
Version as maintenance-/service switchYes
Motor drive integratedYes
Type of control elementOther
Version as safety switchYes
InterlockableYes
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Switching power at 400 V52kW
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC415V
Suitable for intermediate mountingNo
Colour control elementOther
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchYes
Voltage release optionalNo
Rated permanent current at AC-23, 400 V80A
Motor drive optionalNo
Rated short-time withstand current lcw7kA
Suitable for front mounting centreNo
Suitable for floor mountingYes
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V80A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
