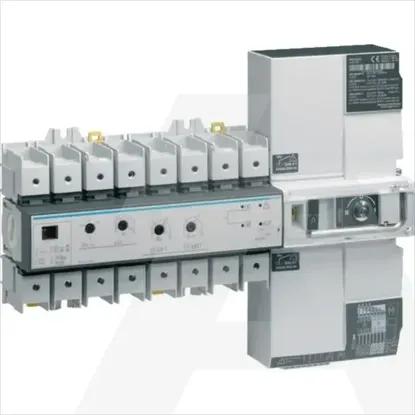

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu100A
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as change-over contact0
InterlockableYes
Rated operating voltage380 - 415V
Degree of protection (IP), front sideIP20
Number of poles4
Version as safety switchYes
Suitable for floor mountingYes
Suitable for distribution board installationYes
Motor drive integratedYes
Rated short-time withstand current lcw7kA
Colour control elementOther
Version as main switchYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Type of electrical connection of main circuitScrew connection
Type of control elementOther
Rated operation power at AC-23, 400 V45kW
Number of switches1
Version as reversing switchYes
Switching power at 400 V65kW
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V100A
Voltage release optionalNo
Max. rated operation voltage Ue AC415V
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V100A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
