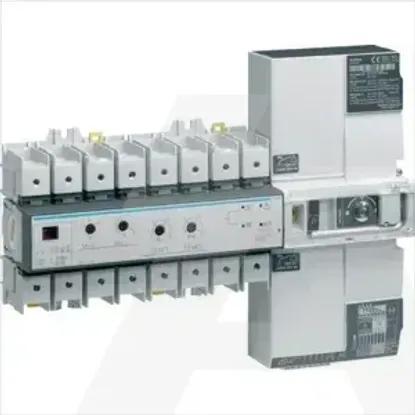

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq50kA
Rated operating voltage380 - 415V
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu125A
Number of poles4
Degree of protection (IP), front sideIP20
Number of switches1
Number of auxiliary contacts as change-over contact0
Motor drive integratedYes
InterlockableYes
Suitable for intermediate mountingNo
Device constructionBuilt-in device fixed built-in technique
Version as maintenance-/service switchYes
Voltage release optionalNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V125A
Suitable for floor mountingYes
Type of electrical connection of main circuitScrew connection
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Colour control elementOther
Version as main switchYes
Switching power at 400 V82kW
Suitable for distribution board installationYes
Version as safety switchYes
Max. rated operation voltage Ue AC415V
Rated short-time withstand current lcw7kA
Rated operation power at AC-23, 400 V56kW
Version as emergency stop installationNo
Type of control elementOther
Rated permanent current at AC-23, 400 V125A
Version as reversing switchYes
Degree of protection (NEMA)Other
