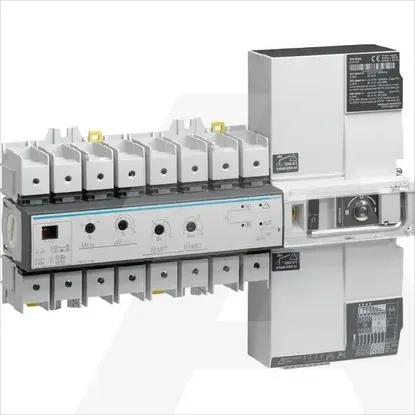

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Conditioned rated short-circuit current Iq50kA
Number of poles4
Number of auxiliary contacts as normally closed contact0
Rated operating voltage380 - 415V
Rated permanent current Iu125A
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of switches1
Version as main switchYes
Motor drive integratedYes
Type of control elementOther
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Version as safety switchYes
InterlockableYes
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw7kA
Colour control elementOther
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V56kW
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Voltage release optionalNo
Motor drive optionalNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC415V
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V82kW
Degree of protection (NEMA)Other
Version as reversing switchYes
Rated permanent current at AC-21, 400 V125A
Rated permanent current at AC-23, 400 V125A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
