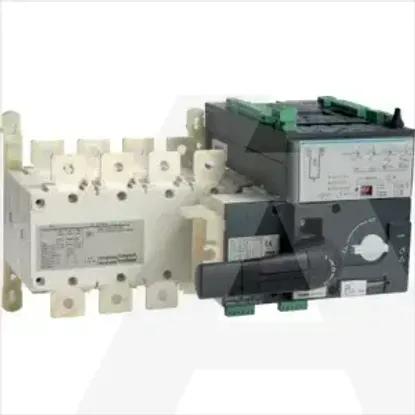

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu400A
Number of poles4
Conditioned rated short-circuit current Iq50kA
Rated operating voltage380 - 415V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Version as safety switchYes
Number of switches1
InterlockableYes
Motor drive integratedYes
Type of electrical connection of main circuitCable clamp
Version as main switchYes
Version as emergency stop installationNo
Type of control elementOther
Rated short-time withstand current lcw15kA
Colour control elementOther
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V180kW
Version as maintenance-/service switchYes
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Switching power at 400 V263kW
Rated permanent current at AC-21, 400 V400A
Rated permanent current at AC-23, 400 V400A
Version as reversing switchYes
Max. rated operation voltage Ue AC415V
Voltage release optionalNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
HIC440G
