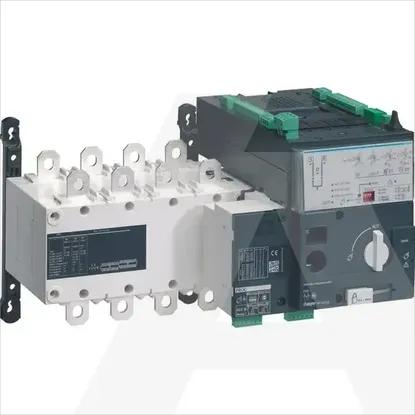

HIC480G
Code: 1761881
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Max. rated operation voltage Ue AC415V
Version as reversing switchYes
Version as emergency stop installationNo
Rated permanent current Iu800A
Rated operating voltage380 - 415V
Number of switches1
Rated permanent current at AC-21, 400 V800A
Rated operation power at AC-23, 400 V360kW
Rated short-time withstand current lcw64kA
Conditioned rated short-circuit current Iq50kA
Number of poles4
Motor drive optionalNo
Number of auxiliary contacts as normally closed contact0
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V526kW
Number of auxiliary contacts as change-over contact0
InterlockableYes
Degree of protection (NEMA)Other
Motor drive integratedYes
Suitable for front mounting centreNo
Degree of protection (IP), front sideIP00
Suitable for intermediate mountingNo
Type of control elementOther
Colour control elementOther
Suitable for distribution board installationYes
Type of electrical connection of main circuitCable clamp
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as normally open contact1
Rated permanent current at AC-23, 400 V800A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
