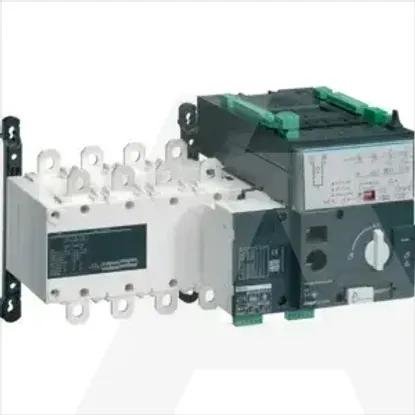

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •HAGER
Technical specifications
Number of switches1
Number of poles4
Rated operating voltage380 - 415V
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Degree of protection (IP), front sideIP00
Type of electrical connection of main circuitCable clamp
Type of control elementOther
Number of auxiliary contacts as normally open contact1
Motor drive integratedYes
Rated permanent current Iu1600A
Version as maintenance-/service switchYes
InterlockableYes
Rated operation power at AC-23, 400 V562kW
Version as main switchYes
Conditioned rated short-circuit current Iq100kA
Version as safety switchYes
Colour control elementOther
Rated short-time withstand current lcw78kA
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Motor drive optionalNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Version as reversing switchYes
Rated permanent current at AC-21, 400 V1600A
Switching power at 400 V1053kW
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC415V
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V1250A
