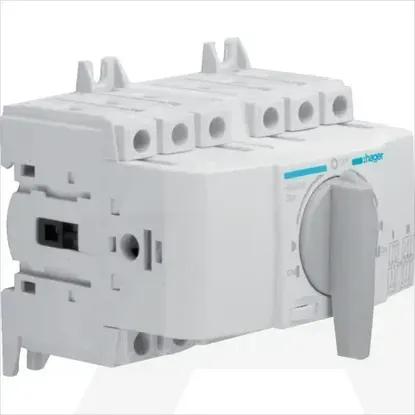

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu20A
Rated operating voltage380 - 415V
InterlockableYes
Conditioned rated short-circuit current Iq50kA
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingYes
Colour control elementGrey
Version as safety switchYes
Rated short-time withstand current lcw1.26kA
Version as main switchYes
Number of poles3
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V9kW
Version as emergency stop installationNo
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC415V
Device constructionComplete device in housing
Motor drive optionalNo
Version as reversing switchYes
Voltage release optionalNo
Rated permanent current at AC-21, 400 V20A
Switching power at 400 V13kW
Suitable for intermediate mountingNo
