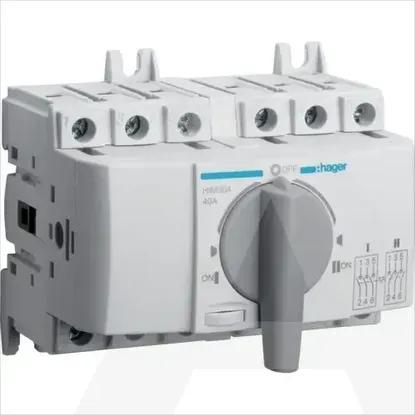

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •HAGER
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu40A
Rated operation power at AC-3, 400 V-kW
Version as emergency stop installationNo
Number of poles3
Degree of protection (IP), front sideIP20
Rated operating voltage380 - 415V
Conditioned rated short-circuit current Iq50kA
Motor drive integratedNo
Type of control elementShort thumb-grip
Version as maintenance-/service switchYes
Number of auxiliary contacts as change-over contact0
InterlockableYes
Rated operation power at AC-23, 400 V18kW
Version as main switchYes
Version as safety switchYes
Rated short-time withstand current lcw1.26kA
Type of electrical connection of main circuitScrew connection
Colour control elementGrey
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Voltage release optionalNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Max. rated operation voltage Ue AC415V
Suitable for floor mountingYes
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V40A
Switching power at 400 V26kW
Version as reversing switchYes
